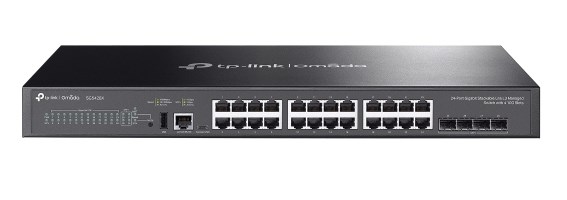

TP-Link Omada SG5428X network switch Managed L3 Gigabit Ethernet (10/100/1000) Black

Operational conditions | Operating temperature (T-T)

-5 - 45 °C

Performance | Firmware upgradeable

Yes

Management features | Web-based management

Yes

Security | MAC address filtering

Yes

Security | Security algorithms

SNMP, SNMPv3, SNMPv2

Power over Ethernet (PoE) | Power over Ethernet (PoE)

No

Network | Networking standards

IEEE 802.3af, IEEE 802.3bt, IEEE 802.3at

Design | Product colour

Black

Performance | Processor frequency

1200 MHz

Operational conditions | Storage temperature (T-T)

-40 - 70 °C

Management features | Quality of Service (QoS) support

Yes

Operational conditions | Operating relative humidity (H-H)

10 - 90%

Power | Power consumption (max)

19.6 W

Operational conditions | Storage relative humidity (H-H)

5 - 90%

Power | AC input frequency

50/60 Hz

Packaging content | Quick start guide

Yes

Design | LED indicators

Yes

Ports & interfaces | USB 2.0 ports quantity

1

Power | AC input voltage

100 - 240 V

Certificates | Compliance certificates

Federal Communications Commission (FCC), RoHS, CE

Weight & dimensions | Height

44 mm

Data transmission | Switching capacity

128 Gbit/s

Performance | Flash memory

512 MB

Ports & interfaces | Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Performance | Internal memory

2000 MB

Security | Static port security

Yes

Network | 10G support

Yes

Performance | Memory type

DRAM

Security | IGMP snooping

Yes

Performance | Mean time between failures (MTBF)

519.543 h

Power | Power source

AC

Multicast features | Multicast support

Yes

Security | DHCP features

DHCP server, DHCP relay

Management features | Switch layer

L3

Network | VLAN support

Yes

Network | Port mirroring

Yes

Data transmission | MAC address table

16000 entries

Data transmission | Packet buffer memory

12 MB

Ports & interfaces | SFP+ module slots quantity

4

Security | Access Control List (ACL)

Yes

Management features | Switch type

Managed

Operational conditions | Heat dissipation

66.87 BTU/h

Performance | Processor manufacturer

ARM

Weight & dimensions | Depth

180 mm

Design | Rack mounting

Yes

Weight & dimensions | Width

440 mm

Performance | Built-in processor

Yes

Network | Number of VLANs

4000

Ports & interfaces | Basic switching RJ-45 Ethernet ports quantity

24

Power | Surge protection

Yes

Packaging content | Cables included

AC

Security | Password protection

Yes

Power | Power supply included

Yes

Data transmission | Jumbo frames support

Yes

Network | Broadcast storm control

Yes

Management features | ARP inspection

Yes

Data transmission | Store-and-forward

Yes

Data transmission | Jumbo frames

9000

Network | Link aggregation

Yes

Ports & interfaces | Gigabit Ethernet (copper) ports quantity

24

Other features | Bandwidth

64 Gbit/s

Performance | Fanless

Yes

Security | IP-MAC-Port binding

Yes

Performance | Telnet

Yes

Power | Surge protection voltage

6 kV

Security | SSH/SSL support

Yes

Data transmission | Forwarding rate

95.23 Mpps

Network | Virtual LAN features

Protocol-based VLAN, Voice VLAN, MAC address-based VLAN, Private VLAN

Ports & interfaces | Console port

RJ-45

Other features | Management level

4

Ports & interfaces | USB Type-C ports quantity

1

Design | Stackable

Yes

Management features | Cloud-managed

Yes

Packaging content | Rack mount kit

Yes

Performance | Physical stacking (units)

4
