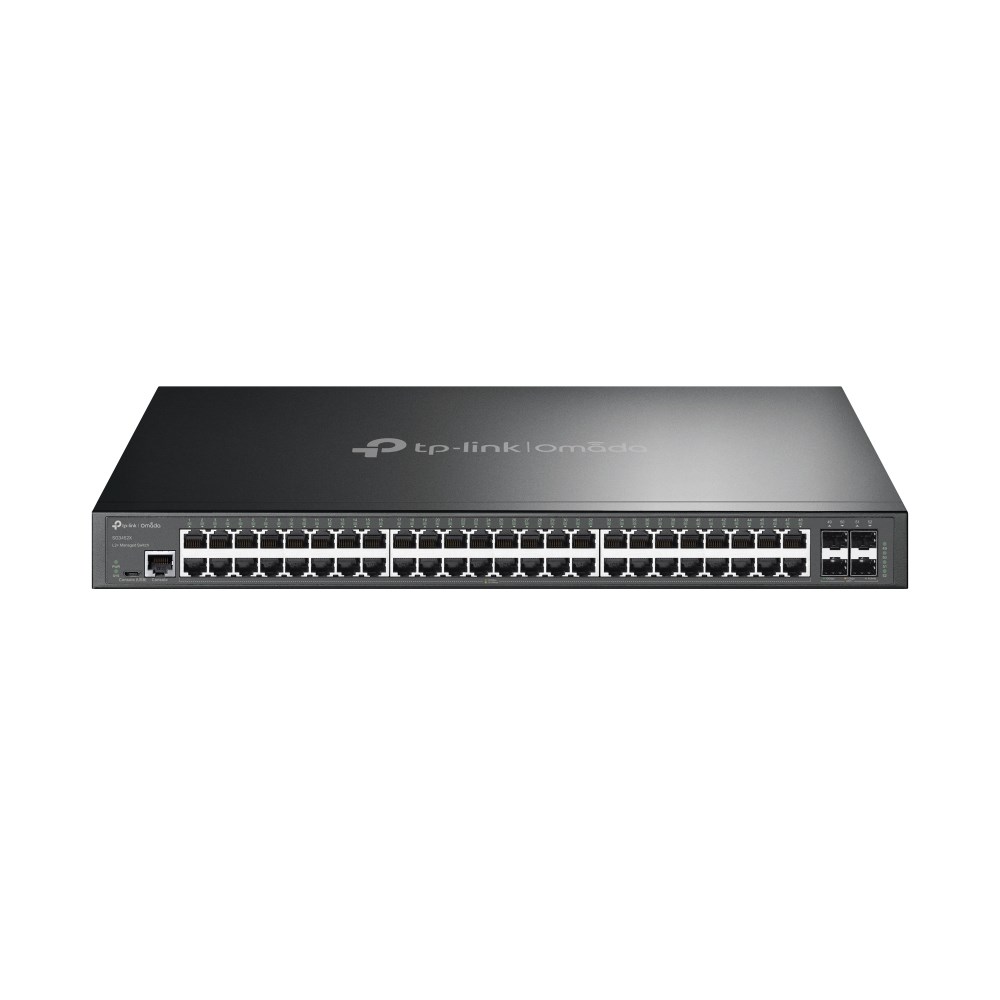

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Certificates | Certification

CE, FCC, RoHS

Ports & interfaces | Console port

RJ-45/Micro-USB

Management features | Cloud-managed

Taip

Safety warning | Warnings

The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations., Ensure the unit is adequately ventilated during operation., Do not open the case or try to repair it yourself.

Network | Head-of-line (HOL) blocking

Taip

Security | IGMP proxy

Taip

Management features | ARP inspection

Taip

Management features | System event log

Taip

Protocols | Management protocols

SNMPv1/v2c/v3, SNTP

Management features | Switch layer

L2+

Network | IPv4 routes

48

Data transmission | Static route

Taip

Security | Static port security

Taip

Security | Authentication type

AAA, RADIUS, TACACS+

Network | Rate limiting

Taip

Security | Loop protection

Taip

Management features | Switch type

Managed

Network | IPv6 routes

48

Management features | MIB support

RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,

Security | Queue scheduling algorithms

WRR+SP, SP, Weighted Round Robin (WRR)

Security | SSH/SSL support

Taip

Security | Authentication

Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication

Management features | Configuring Location Settings (CLI)

Taip

Packaging data | Rack rails

Taip

Protocols | IPv4 & IPv6 features

IPv6 ping, IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 tracert

Network | Virtual LAN features

Voice VLAN, Tagged VLAN, Private VLAN, VLAN mapping

Data transmission | Number of static routes

48

Security | BPDU filtering/protection

Taip

Security | Access Control List (ACL)

Taip

Security | IP-MAC-Port binding

Taip

Data transmission | Forwarding rate

130.9 Mpps

Protocols | GARP VLAN Registration Protocol (GVRP)

Taip

Packaging content | Rack mount kit

Taip

Network | Flow control support

Taip

Network | Spanning tree protocol

Taip

Data transmission | Jumbo frames

9000

Management features | Huawei-proprietary MIB

Y

Management features | Public MIB

Y

Network | Link aggregation

Taip

Network | Broadcast storm control

Taip

Multicast features | Multicast Listener Discovery (MLD) snooping

Y

Ports & interfaces | Power connector

AC-in jack

Packaging content | Quick start guide

Taip

Power | Power consumption (max)

32.72 W

Data transmission | Switching capacity

176 Gbit/s

Design | Form factor

1U

Multicast features | Multicast support

Taip

Power | AC input voltage

100 - 240 V

Ports & interfaces | SFP+ module slots quantity

4

Weight & dimensions | Height

44 mm

Security | IGMP snooping

Taip

Power over Ethernet (PoE) | Power over Ethernet (PoE)

Ne

Weight & dimensions | Width

440 mm

Operational conditions | Operating relative humidity (H-H)

10 - 90%

Power | Power supply included

Taip

Network | Port mirroring

Taip

Weight & dimensions | Depth

220 mm

Data transmission | Packet buffer memory

12 MB

Network | 10G support

Taip

Packaging content | Cables included

AC

Power | Power source

AC

Data transmission | MAC address table

16000 entries

Packaging data | Package type

Dėžutė

Design | LED indicators

Taip

Operational conditions | Storage temperature (T-T)

-40 - 70 °C

Management features | Quality of Service (QoS) support

Taip

Network | VLAN support

Taip

Ports & interfaces | Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Design | Rack mounting

Taip

Operational conditions | Heat dissipation

111.65 BTU/h

Power | AC input frequency

50/60 Hz

Operational conditions | Storage relative humidity (H-H)

5 - 90%

Network | Networking standards

IEEE 802.3ad, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w

Ports & interfaces | Basic switching RJ-45 Ethernet ports quantity

48

Management features | Web-based management

Taip

Security | MAC address filtering

Taip

Design | Product colour

Juoda

Network | Number of VLANs

4000

Security | DHCP features

DHCP client, DHCP relay, DHCP server

Security | Password protection

Taip

Operational conditions | Operating temperature (T-T)

0 - 45 °C

Data transmission | Jumbo frames support

Taip

Design | Number of fans

0 fan(s)
