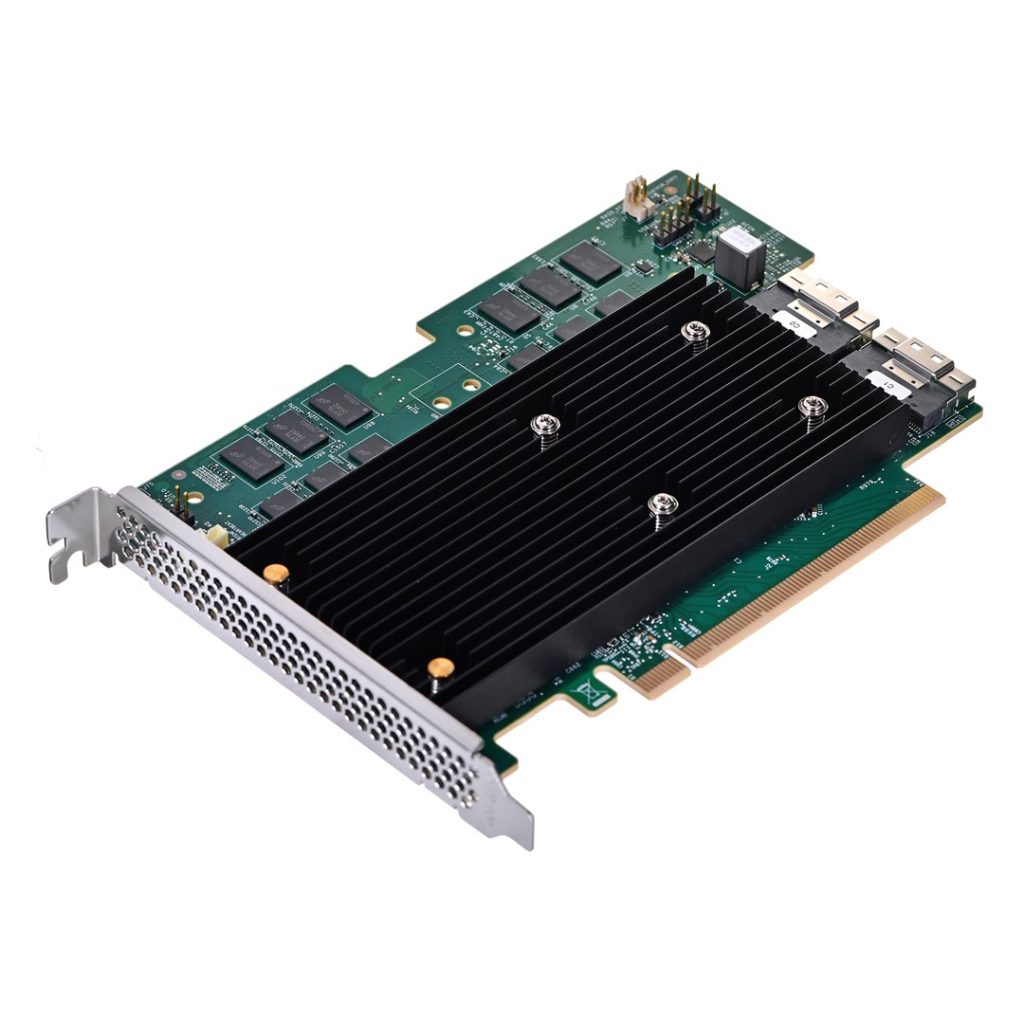

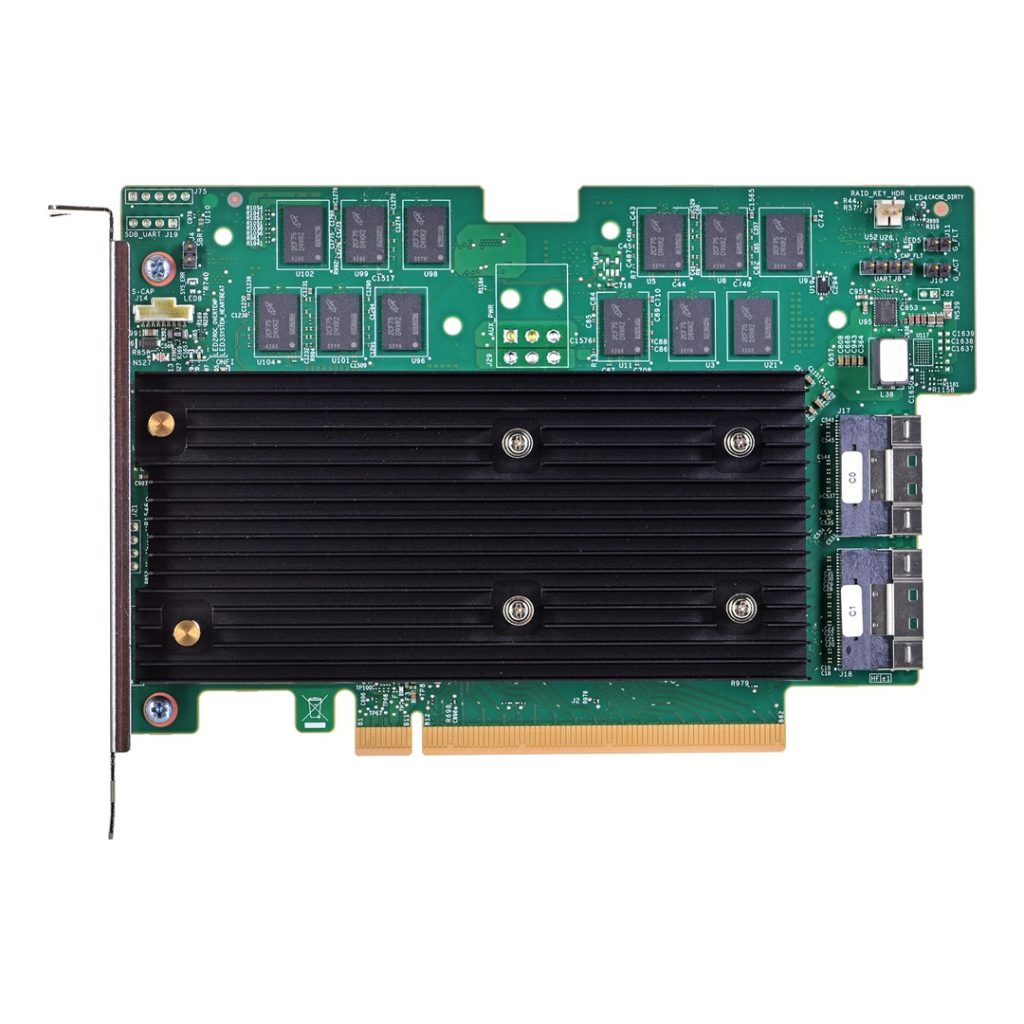

Broadcom MegaRAID 9670W-16i RAID controller PCI Express x16 4.0 6 Gbit/s

Characteristics

Performance | Certification Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)

Operational conditions | Operating temperature (T-T) 0 - 55 °C

Ports & interfaces | PCI Express slots version 4.0

Ports & interfaces | Supported storage drive interfaces SAS, Serial ATA

Performance | RAID levels 1, 60, 10, 0, 6, 50, 5

1,413.42 €

The price on the website includes tax.

Delivery time 2-4 days

Performance | Certification

Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
Operational conditions | Operating temperature (T-T)

0 - 55 °C
Ports & interfaces | PCI Express slots version

4.0
Ports & interfaces | Supported storage drive interfaces

SAS, Serial ATA
Performance | RAID levels

1, 60, 10, 0, 6, 50, 5
Weight & dimensions | Depth

111.1 mm
Performance | S.M.A.R.T. support

Yes
Performance | Number of devices supported

240
Ports & interfaces | Internal SAS ports

2
Technical details | Sustainability certificates

RoHS, WEEE
System requirements | Server operating systems supported

SUSE Linux Enterprise Server
Other features | Other operating systems supported

VMware vSphere ESXi
Ports & interfaces | Host interface

PCI Express x16
Performance | SSD support

Yes
Weight & dimensions | Width

155.6 mm
Power | Power consumption (typical)

25 W
System requirements | Windows operating systems supported

Yes
Performance | Data transfer rate

6 Gbit/s
Performance | Mean time between failures (MTBF)

3000000 h
Performance | Form factor

MD2
Performance | Channels quantity

16 channels
System requirements | Linux operating systems supported

Yes
Operational conditions | Operating relative humidity (H-H)

5 - 90%
