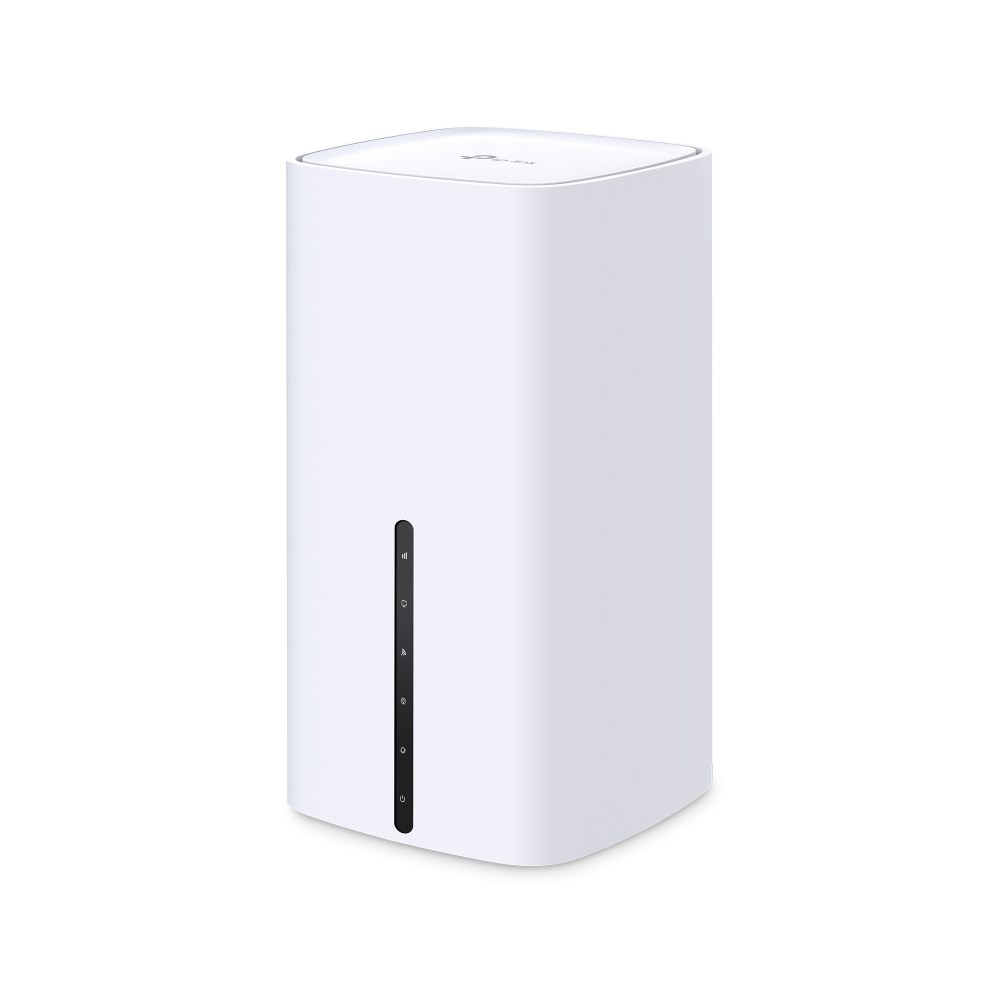

Router TP-Link ARCHER NX600 5G AX3600 Wireless Dual

Network | VPN support

PPTP VPN, IPSec VPN , OpenVPN

Network | Ethernet LAN data rates

10, 1000, 100

Network | Ethernet LAN

Yes

WAN connection | SIM card slot

Yes

Protocols | Supported network protocols

IPv4, IPv6

Mobile network | 4G bands supported

2600 MHz, 850, 2500, 3700 MHz, 3500, 900, 1800, 700, 2300, 2100, 800

Wireless LAN features | Wi-Fi standards

Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 4 (802.11n), 802.11g

Weight & dimensions | Width

99 mm

Mobile network | 5G bands supported

850, 700, 1800, 2300, 3500, 2100, 3700 MHz, 2500, 2600, 800, 900

Packaging content | Quick installation guide

Yes

System requirements | Windows operating systems supported

Windows 8.1, Windows Vista, Windows NT, Windows 7, Windows XP, Windows 10, Windows 98SE, Windows 2000, Windows 8

Mobile network | UMTS bands supported

850, 900, 2100 MHz

Operational conditions | Storage temperature (T-T)

-40 - 70 °C

Management features | Quality of Service (QoS) support

Yes

Wireless LAN features | Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Power | Output voltage

12 V

Design | Product colour

White

Packaging content | AC adapter included

Yes

Wireless LAN features | WLAN data transfer rate (first band)

1148 Mbit/s

Security | Parental control

Yes

Mobile network | Mobile network generation

5G

WAN connection | 3G/4G USB modem compatibility

No

Packaging content | Cables included

LAN (RJ-45)

WAN connection | Ethernet WAN

Yes

System requirements | Linux operating systems supported

Yes

Operational conditions | Operating relative humidity (H-H)

10 - 90%

Mobile network | 3G standards

UMTS, HSPA, DC-HSDPA, HSPA+

Weight & dimensions | Depth

99 mm

Power | AC input frequency

50/60 Hz

Design | On/off switch

Yes

Security | Security algorithms

WPA2-PSK, 64-bit WEP, WPA2, WPA, 128-bit WEP, WPA-PSK

Wireless LAN features | WLAN data transfer rate (max)

3600 Mbit/s

Antenna | Antennas quantity

10

Wireless LAN features | WLAN data transfer rate (second band)

2402 Mbit/s

System requirements | Browser supported

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser

Power | Output current

2 A

Security | Access Control List (ACL)

Yes

Ports & interfaces | WAN/Ethernet LAN ports quantity

1

Management features | Reset button

Yes

Wireless LAN features | Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Network | Number of guest networks (2.4 GHz)

1

Safety warning | Warnings

Do not dismantle the unit yourself, there is a risk of electric shock., Do not expose the device to extreme temperatures., Do not expose the device to water or moisture.

Ports & interfaces | USB port

No

Network | Port triggering

Yes

Protocols | DHCP server

Yes

Security | Firewall security

IPv4 SPI Firewall, IPv6 Firewal

Network | Ethernet LAN interface type

Gigabit Ethernet

Network | Dynamic DNS (DDNS)

Yes

Power | AC input voltage

100 - 240 V

Weight & dimensions | Height

190 mm

Antenna | Antenna design

Internal

Design | Product type

Tabletop router

Network | Number of guest networks (5 GHz)

1

Security | DMZ support

Yes

Mobile network | SIM card type

NanoSIM

Certificates | Compliance certificates

RoHS, CE

Power | Power source type

AC

Management features | Wi-Fi Multimedia (WMM)/(WME)

Yes

Operational conditions | Storage relative humidity (H-H)

5 - 90%

Ports & interfaces | Ethernet LAN (RJ-45) ports

2

Protocols | DHCP client

Yes

Security | Firewall

Yes

Operational conditions | Operating temperature (T-T)

0 - 40 °C

System requirements | Mac operating systems supported

Yes

Security | DoS attack prevention

Yes

Mobile network | 4G standard

LTE-TDD & LTE-FDD

WAN connection | WAN connection type

RJ-45

Management features | WPS push button

Yes
