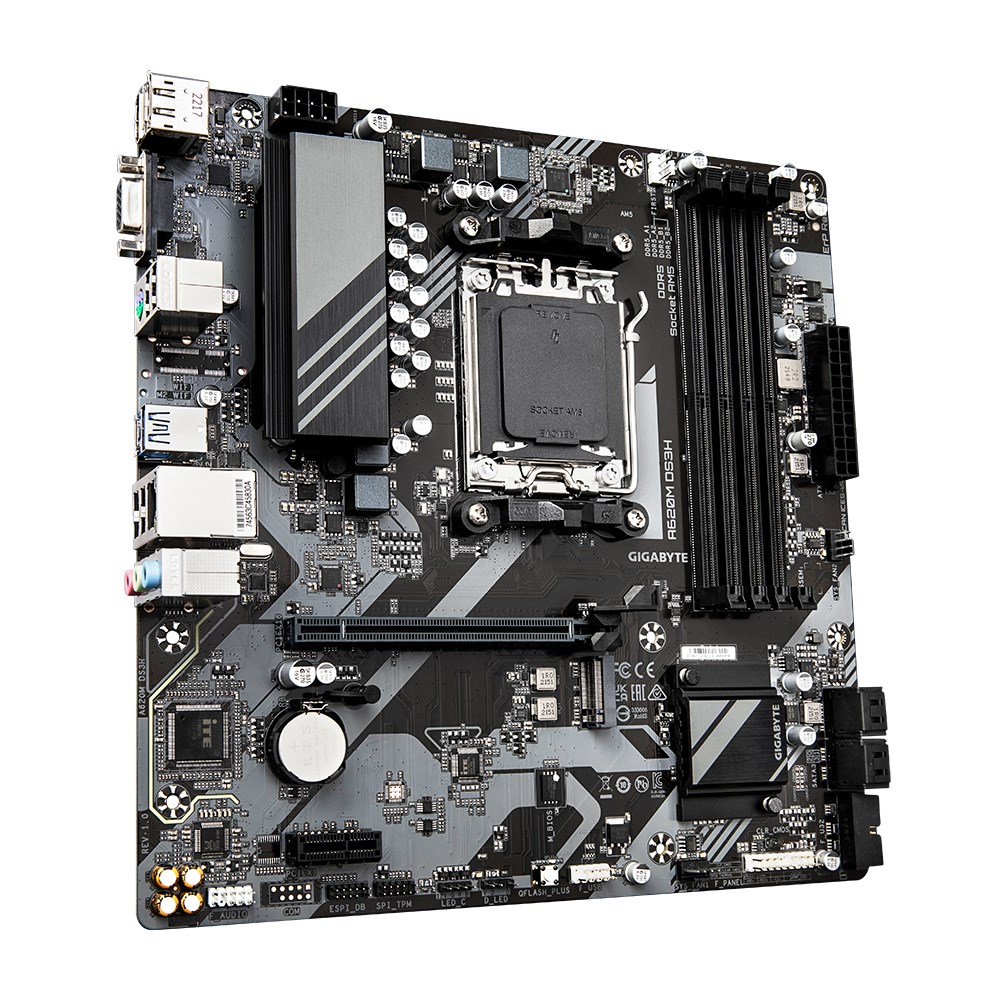

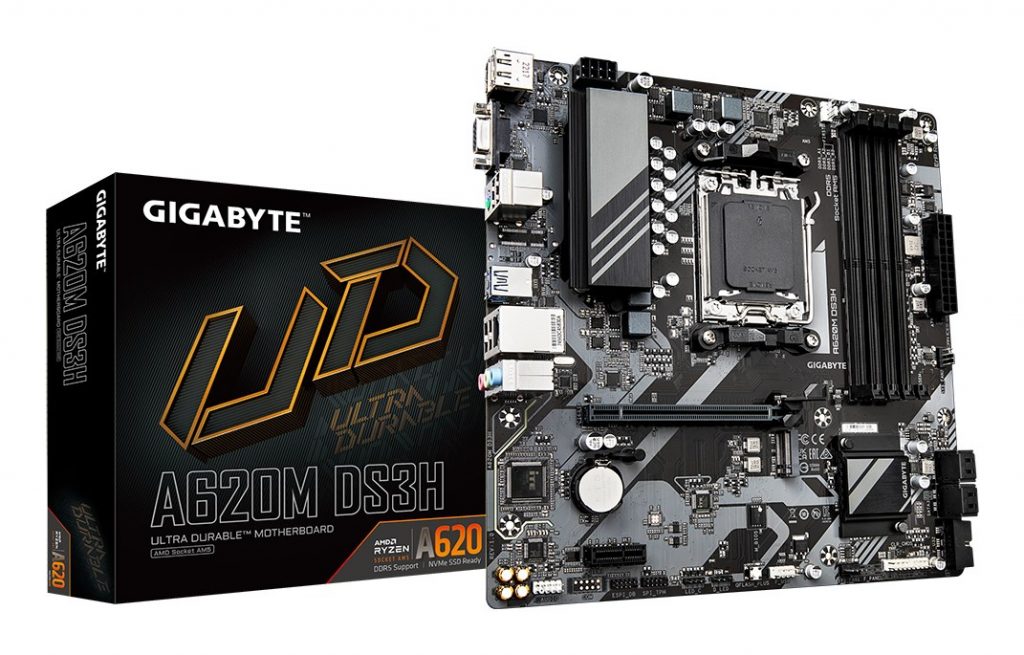

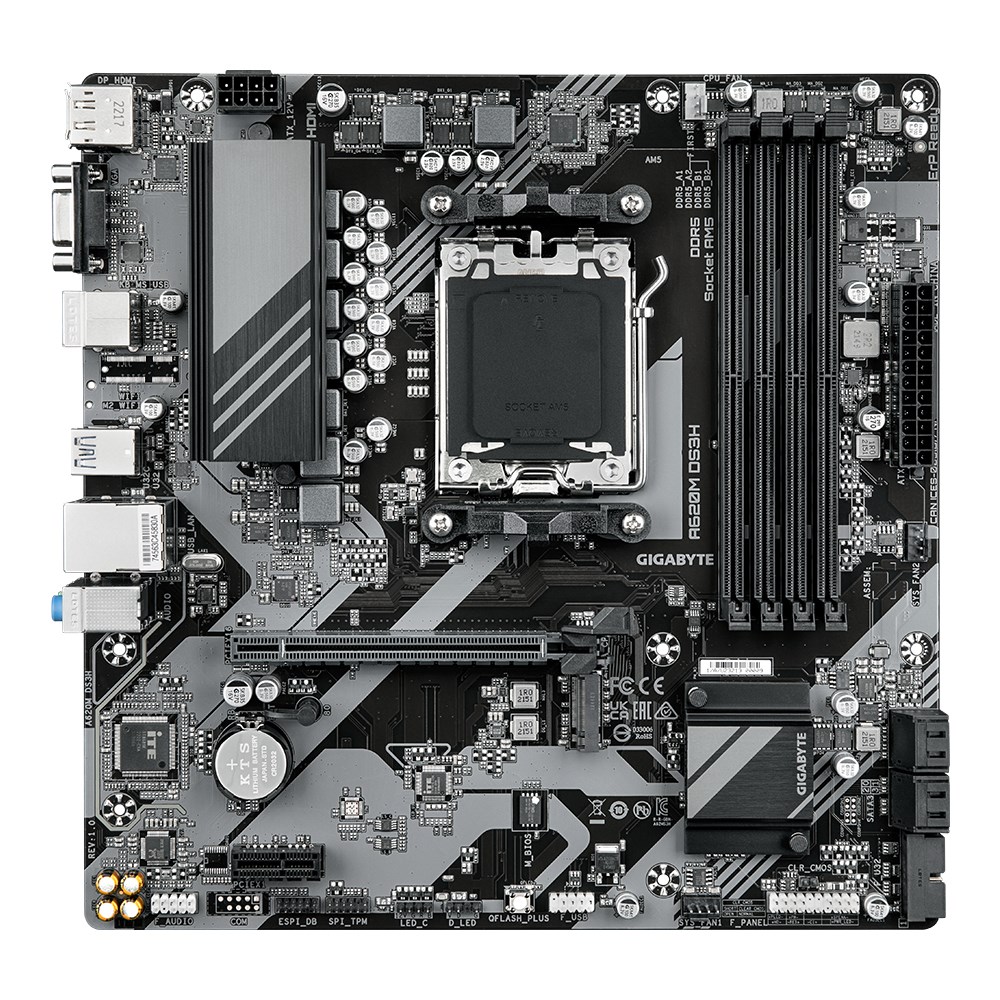

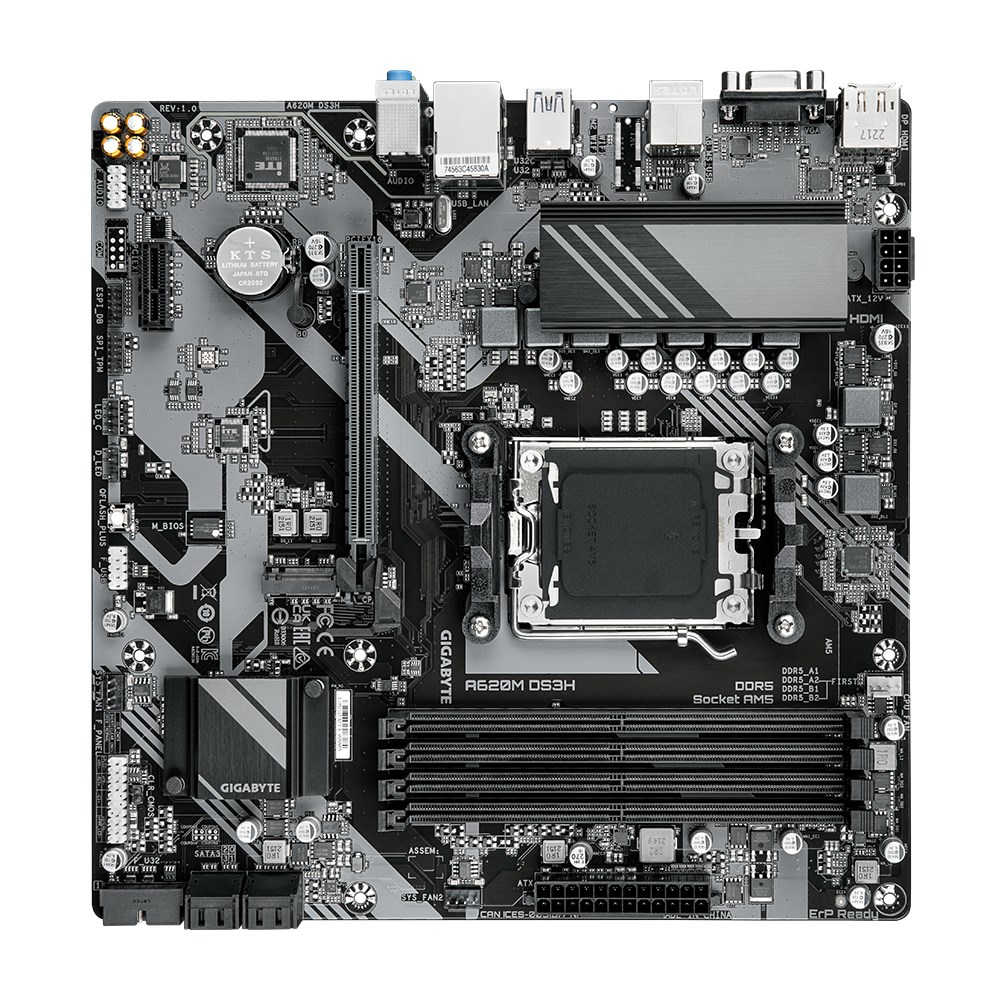

GIGABYTE A620M DS3H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7600MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1

Packaging content | Bundled software

Norton® Internet Security (OEM version)LAN bandwidth management software

Expansion slots | PCI Express x16 slots

1

Internal I/O | Number of SATA III connectors

4

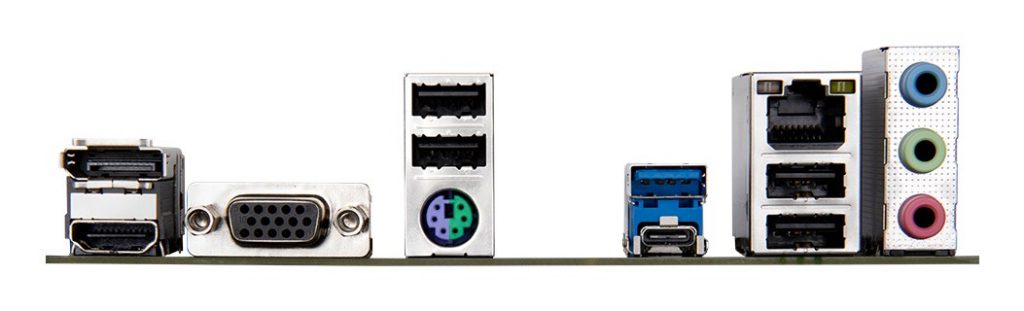

Rear panel I/O ports | Ethernet LAN (RJ-45) ports

1

Internal I/O | TPM connector

Yes

Features | Motherboard chipset family

AMD

Storage controllers | RAID levels

10, 1, 0

Internal I/O | Front panel connector

Yes

Storage controllers | RAID support

Yes

Internal I/O | CPU fan connector

Yes

Internal I/O | EPS power connector (8-pin)

Yes

Memory | Memory channels

Dual-channel

Internal I/O | Front panel audio connector

Yes

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Battery | Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Rear panel I/O ports | HDMI ports quantity

1

Features | Windows operating systems supported

Windows 11 x64, Windows 10 x64

Expansion slots | Number of M.2 (M) slots

1

Processor | Processor manufacturer

AMD

Rear panel I/O ports | PS/2 ports quantity

1

Rear panel I/O ports | USB connector type

USB Type-A, USB Type-C

BIOS | Clear CMOS jumper

Yes

Battery | Battery type

CR2032

Internal I/O | Total number of SATA connectors

4

Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Internal I/O | ATX Power connector (24-pin)

Yes

BIOS | BIOS type

UEFI AMI

Processor | Supported processor sockets

Socket AM5

Rear panel I/O ports | Number of audio jack connectors

3

Features | Motherboard form factor

micro ATX

Rear panel I/O ports | DisplayPort version

1.4

Rear panel I/O ports | HDMI version

2.1

Rear panel I/O ports | USB 2.0 ports quantity

4

Graphics | HDCP

Yes

Rear panel I/O ports | DisplayPorts quantity

1

Features | Audio output channels

7.1 channels

Features | Motherboard chipset

AMD A620

Features | PC health monitoring

Fan, Voltage, Temperature

Network | Ethernet LAN data rates

1000 Mbit/s, 10, 100

Storage controllers | Supported storage drive types

HDD & SSD

Storage controllers | Supported storage drive interfaces

M.2, SATA III

Memory | Supported memory clock speeds

4800, 5200, 6400 MHz, 5600, 7200, 6000, 6800, 6600, 7000, 7600, 6200

Internal I/O | USB 2.0 connectors

1

Memory | Maximum internal memory

256 GB

Memory | Unbuffered memory

Yes

Memory | Supported memory types

DDR5-SDRAM

Network | Ethernet LAN

Yes

Memory | Memory slots type

DIMM

Weight & dimensions | Depth

174 mm

Weight & dimensions | Width

244 mm

Memory | Supported memory clock speed (max)

7600 MHz

Network | Ethernet interface type

Gigabit Ethernet

Processor | Maximum internal memory supported by processor

256 GB

BIOS | Desktop Management Interface (DMI) version

2.7

Rear panel I/O ports | VGA (D-Sub) ports quantity

1

Memory | Number of memory slots

4

Internal I/O | RGB LED pin header

Yes

Battery | Battery weight

3 g

Graphics | HDCP version

2.3

Processor | Compatible processor series

AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Internal I/O | 12V power connector

Yes

Storage controllers | Number of storage drives supported

4

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Battery | Number of battery cells

1

Expansion slots | PCI Express x1 slots

1

Technical details | Warranty period

3 year(s)

Processor | Processor socket

Socket AM5

Rear panel I/O ports | Headphone outputs

3

Battery | Lithium weight per battery

0.07 g

Memory | ECC сompatibility

Non-ECC
