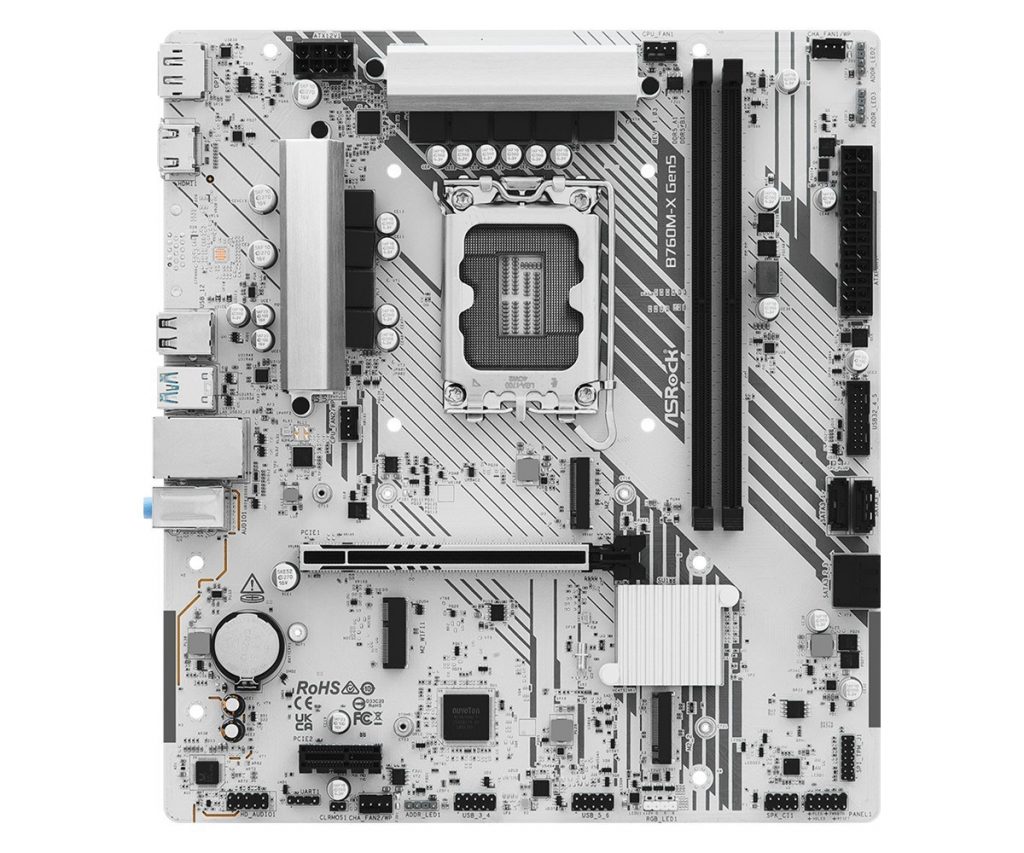

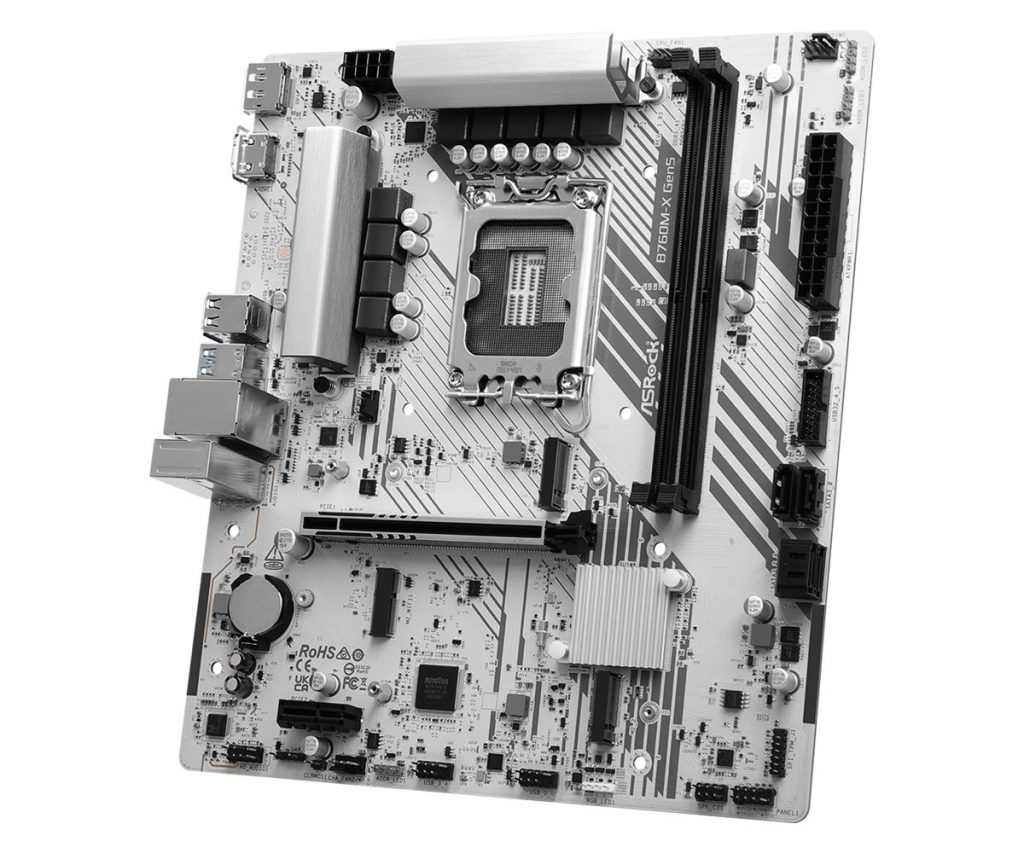

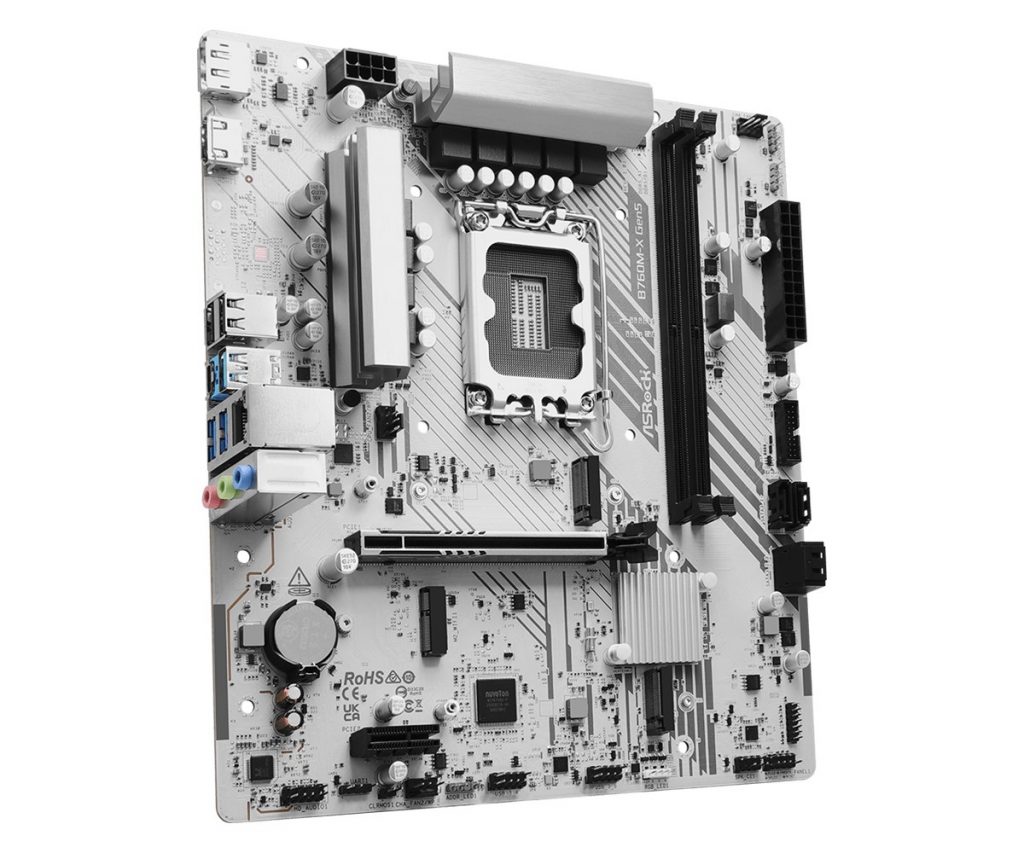

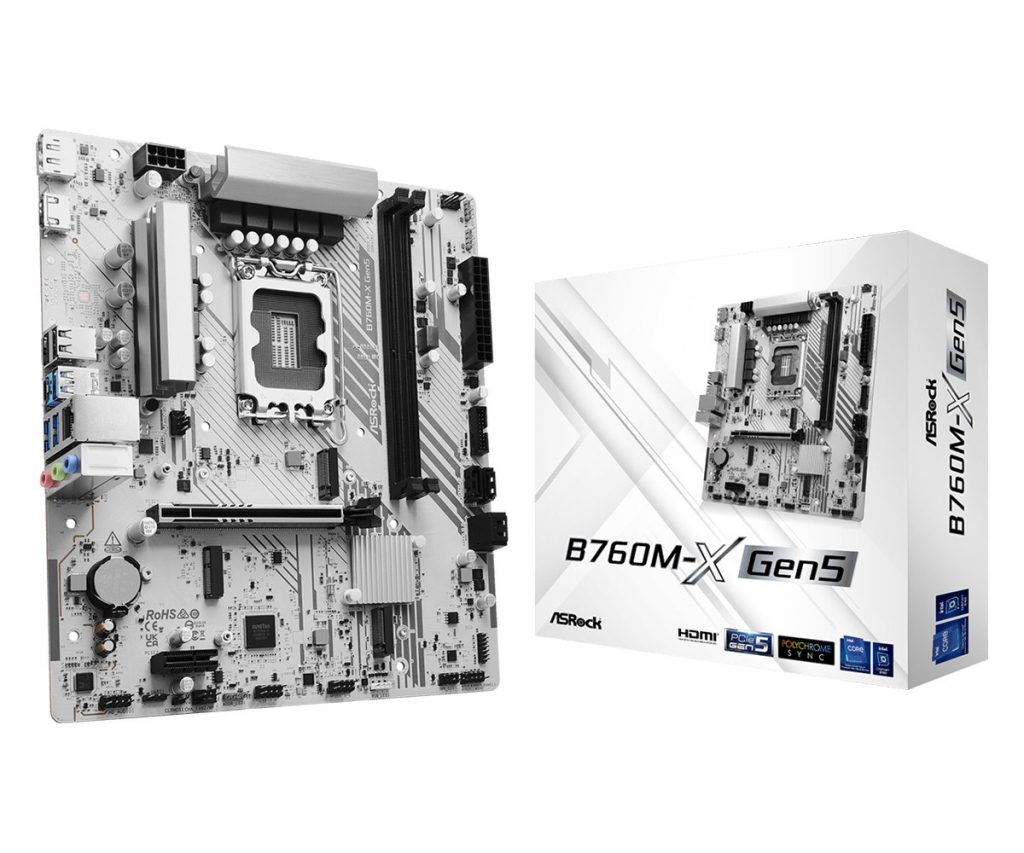

Asrock B760M-X Gen5 Intel B760 LGA 1700 micro ATX

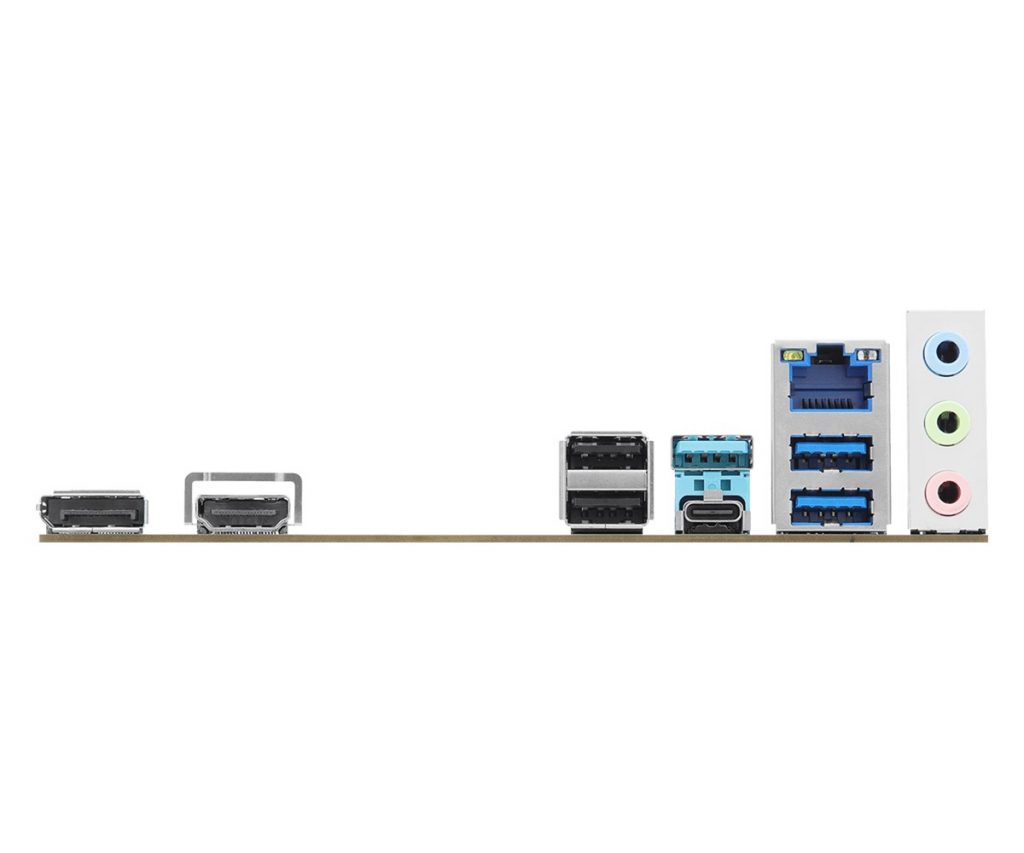

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Weight & dimensions | Width

244 mm

Rear panel I/O ports | HDMI ports quantity

1

Processor | Processor manufacturer

Intel

Processor | Compatible processor series

Intel Core i3 12th Gen, Intel Core i5 12th Gen, Intel Core i3 13th Gen, Intel Core i5 13th Gen, Intel Core i3 14th Gen, Intel Core i5 14th Gen

Features | Windows operating systems supported

Windows 10 x64, Windows 11 x64

Memory | Memory channels

Dual-channel

Packaging content | Cables included

SATA

Network | Ethernet LAN

Yes

Weight & dimensions | Depth

221 mm

Network | Wi-Fi

No

Memory | Supported memory types

DDR5-SDRAM

Memory | Memory slots type

SO-DIMM

Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Network | Ethernet interface type

2.5 Gigabit Ethernet

Processor | Processor socket

LGA 1700

Internal I/O | TPM connector

Yes

Memory | Number of memory slots

2

Internal I/O | RGB LED pin header

Yes

Internal I/O | ATX Power connector (24-pin)

Yes

Rear panel I/O ports | DisplayPort version

1.4

Storage controllers | Supported storage drive interfaces

SATA III, M.2

BIOS | BIOS type

UEFI AMI

Memory | Maximum internal memory

128 GB

Network | LAN controller

Dragon RTL8125BG

Features | Audio chip

Realtek ALC897

Rear panel I/O ports | Ethernet LAN (RJ-45) ports

1

Internal I/O | Number of SATA III connectors

4

Expansion slots | Number of M.2 (M) slots

1

Storage controllers | RAID support

Yes

Memory | Supported memory clock speeds

7200

Features | Motherboard chipset family

Intel

Rear panel I/O ports | USB 2.0 ports quantity

2

Storage controllers | RAID levels

10, 5, 1, 0

Features | Audio output channels

7.1 channels

Internal I/O | Front panel audio connector

Yes

Rear panel I/O ports | DisplayPorts quantity

1

Features | Motherboard form factor

micro ATX

Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Memory | Unbuffered memory

Yes

Features | Motherboard chipset

Intel B760

Expansion slots | PCI Express x1 (Gen 3.x) slots

1

Internal I/O | CPU fan connector

Yes

Internal I/O | USB 2.0 connectors

2

Internal I/O | EPS power connector (8-pin)

Yes

Expansion slots | PCI Express x16 (Gen 5.x) slots

1

Memory | ECC сompatibility

Non-ECC
